Lead Acid Battery

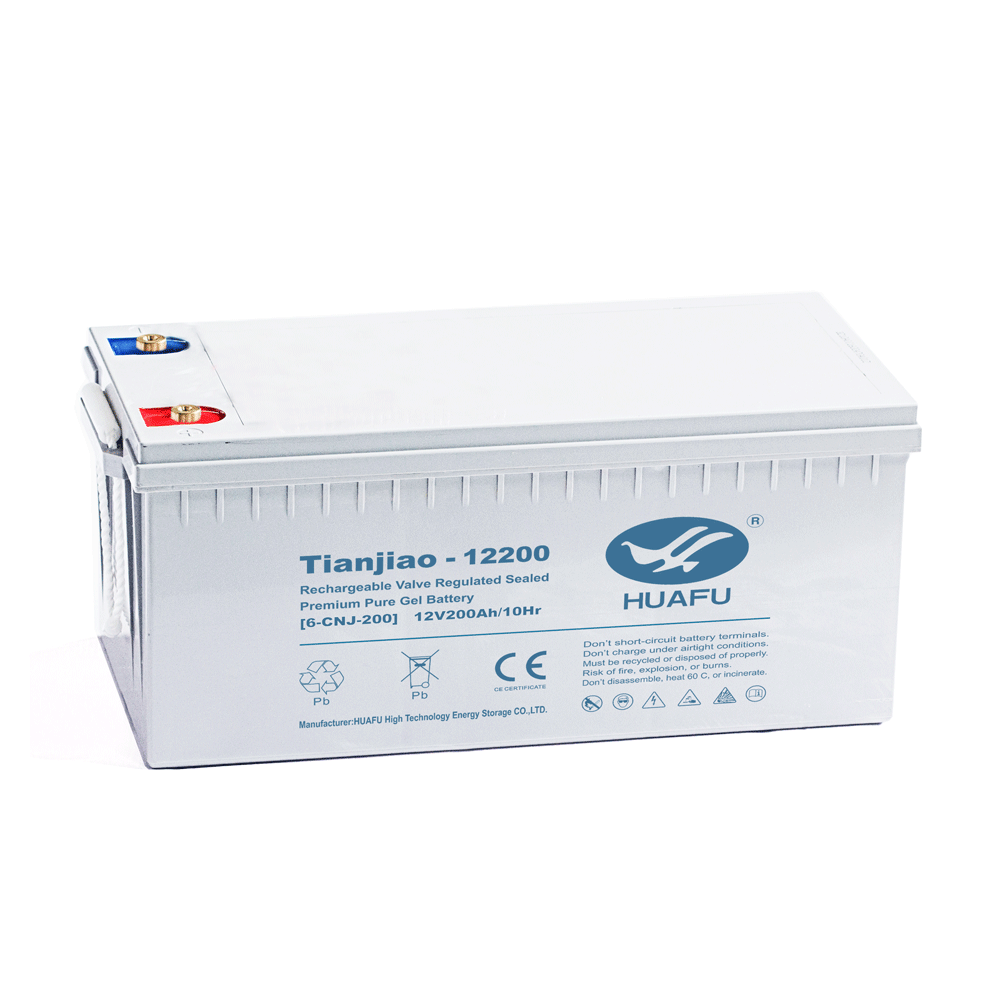

Tianjiao Pure Gel Battery(PureGel 12V200Ah)

Brief introduction Parameter Feature Transport Package

Tianjiao of CNJ series Pure GEL battery utilizes advanced gel technology, composed of strong grids, low-resistance polymer microporous separator and fumed silica Gel electrolyte.

Nominal Voltage: 12V

Nominal Capacity: 200AH

Approximate Weight: 59.3Kgs (130.72Ibs)

Dimensions: 522(20.55)*240(9.45)*219(8.51)*224(8.82) mm/in

· Better deep discharge tolerance
· Strong recover capability of capacity
· Low self-discharge rate
· Wide temperature range
· Valve regulated, maintenance free, non-spillable

Packing Data for 20GP FCL
Qty of battery	Cases/20GP	Total G.W.	Total Volume
408	17	25163.4	21.19
Battery will be put into carton box, then packed into plywood case. (1pc/Carton, 24pcs/Case)

INQUIRY

Solar/Wind System
Household ESS
Lighting/CCTV System
IndustricalCommercial ESS

Nominal Voltage	12V
Nominal Capacity	10Hr Rate to 10.8V @25℃(77℉) 200Ah
Cycle Use Charging Voltage	14.4V @25℃(77℉)
Terminal	M8-Φ18
Operating Temperature Range	-50℃ to 65℃(-58℉~149℉)
Advice operating temperature	15℃~25℃(59℉~77℉)
Self Discharge @ 25˚C(77˚F)	HUAFU PURE GEL series battery self-discharge <3%/month@25℃(77℉),can be stored up to 6 months at 25℃(77℉) and then a freshening charge is required. If the storage temperature higher than 25℃(77℉), a freshening recharge will be required sooner.
Case and cover	A.B.S. (UL94-V0 Optional)
Design Life time	18 Years
