(Plateaus-12220)

Brief introduction Parameter Feature Transport Package

Nominal Voltage: 12V

Nominal Capacity: 220AH

Approximate Weight: 59.5Kgs (131.14Ibs)

Dimensions: 522(20.55)*240(9.45)*219(8.62)*224(8.82) mm/in

Packing Data for 20GP FCL
Qty of battery	Cases/20GP	Total G.W.	Total Volume
408	17	25704	20.78
Battery will be put into carton box, then packed into plywood case. (1pc/Carton, 24pcs/Case)

INQUIRY

Nominal Voltage	12V
Nominal Capacity	10Hr Rate to 10.8V @25℃(77℉) 220Ah
Cycle Use Charging Voltage	14.4V @25℃(77℉)
Terminal	M8-Φ18
Operating Temperature Range	-50℃ to 65℃(-58℉~149℉)
Advice operating temperature	15℃~25℃(59℉~77℉)
Self Discharge @ 25˚C(77˚F)	HUAFU Plateaus series battery self-discharge <3%/month@25℃(77℉),can be stored up to 6 months at 25℃(77℉) and then a freshening charge is required. If the storage temperature higher than 25℃(77℉), a freshening recharge will be required sooner.
Case and cover	A.B.S. (UL94-V0 Optional)
Design Life time	8 Years

RELATED PRODUCTS

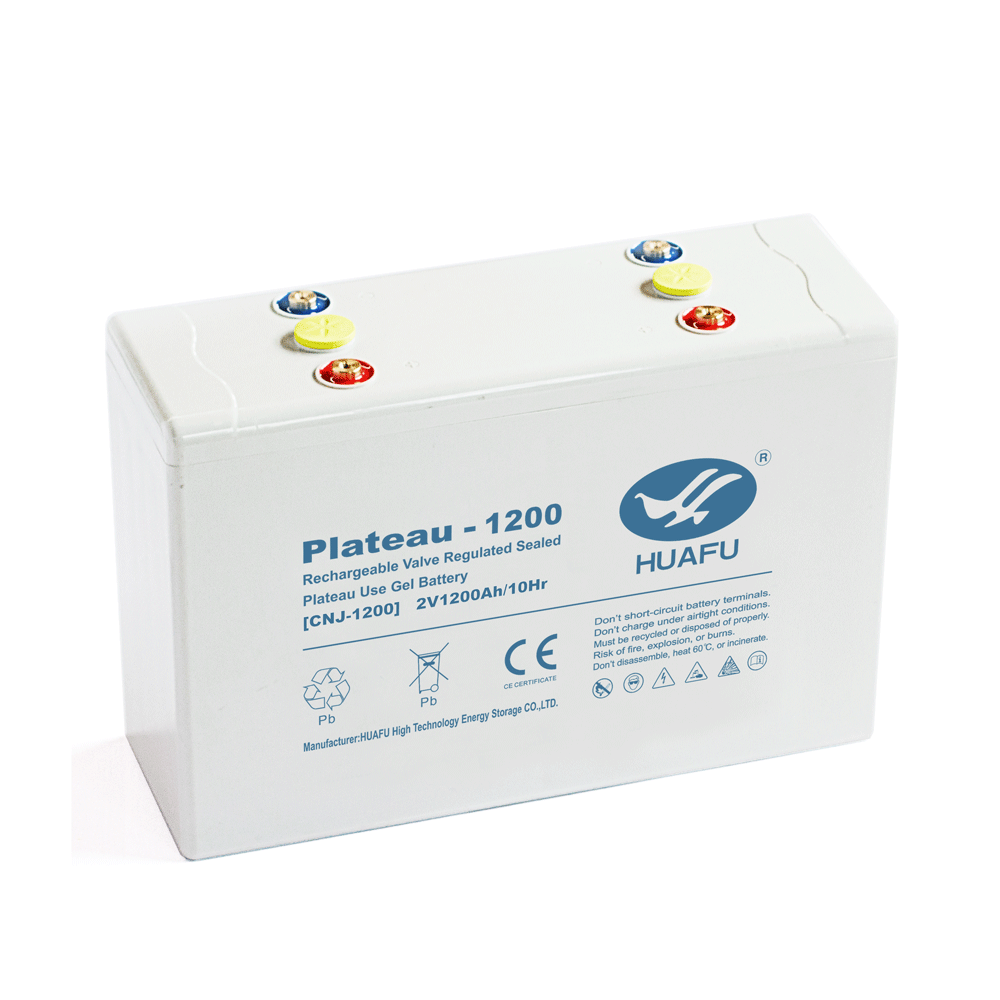

Plateau-1200

Design for area over 1500m above sea level. CNJ Seires plateau gel battery 2V1200Ah owes the good performance of low temperature low pressure.

Capacity AH:1200 Voltage: 2V
VIEW

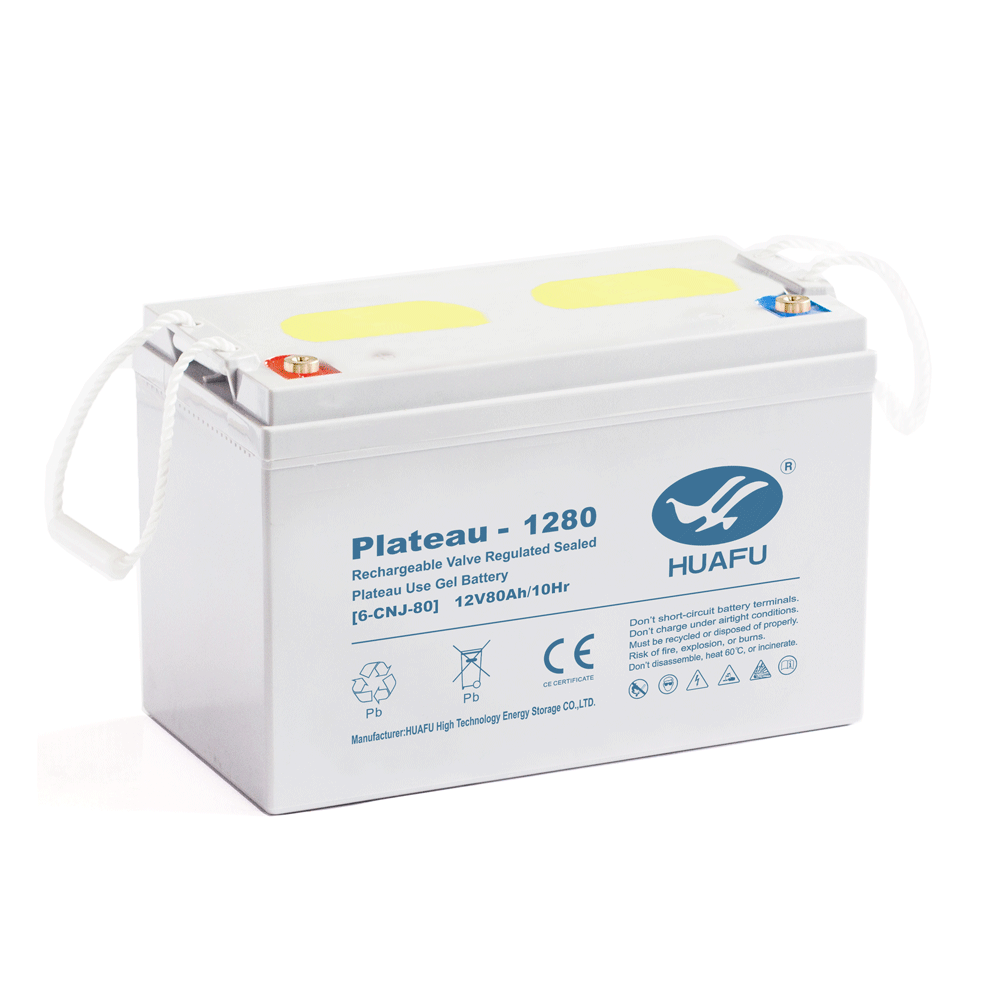

Plateaus-1280

Design for area over 1500m above sea level. CNJ Seires plateau gel battery 12V80Ah owes the good performance of low temperature low pressure.

Capacity AH:80 Voltage: 12V
VIEW
Plateaus-12100

Design for area over 1500m above sea level. CNJ Seires plateau gel battery 12V100Ah owes the good performance of low temperature low pressure.

Capacity AH:100 Voltage: 12V
VIEW

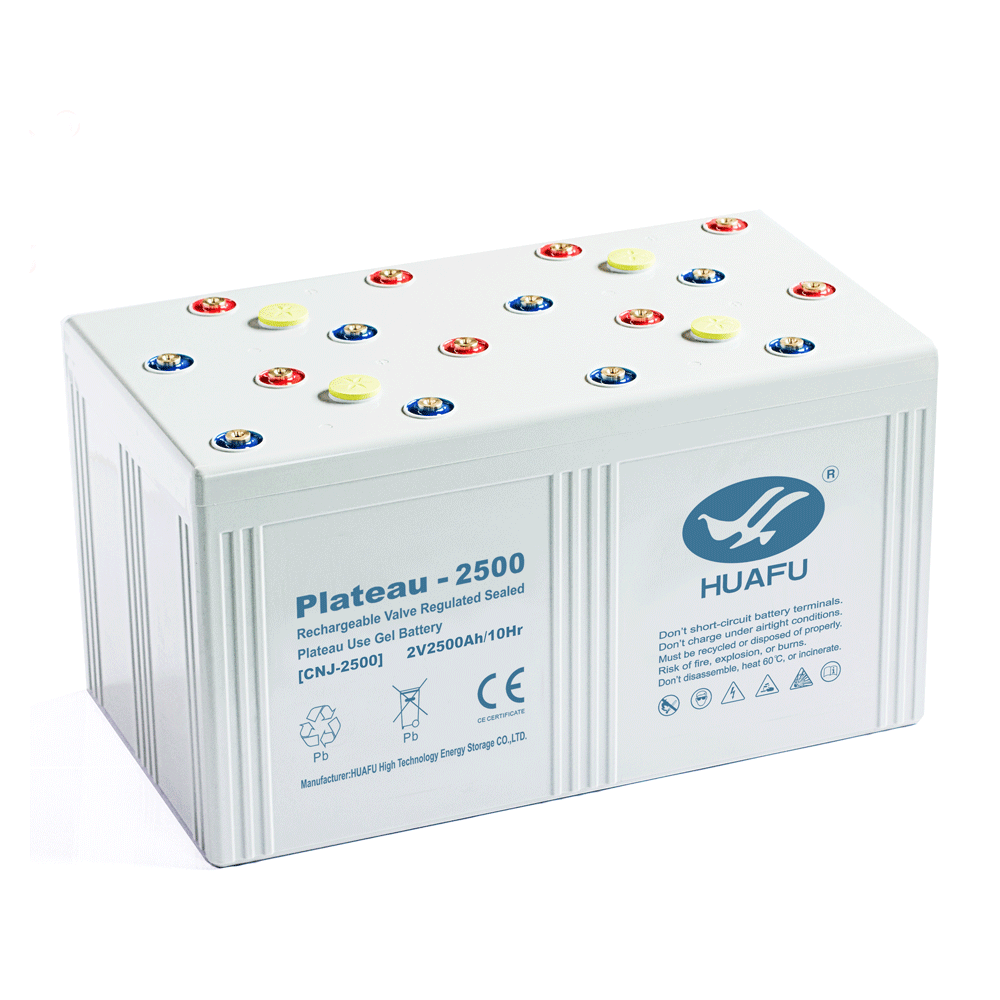

Plateau-2500

Design for area over 1500m above sea level. CNJ Seires plateau gel battery 2V2500Ah owes the good performance of low temperature low pressure.

Capacity AH:2500 Voltage: 2V
VIEW
