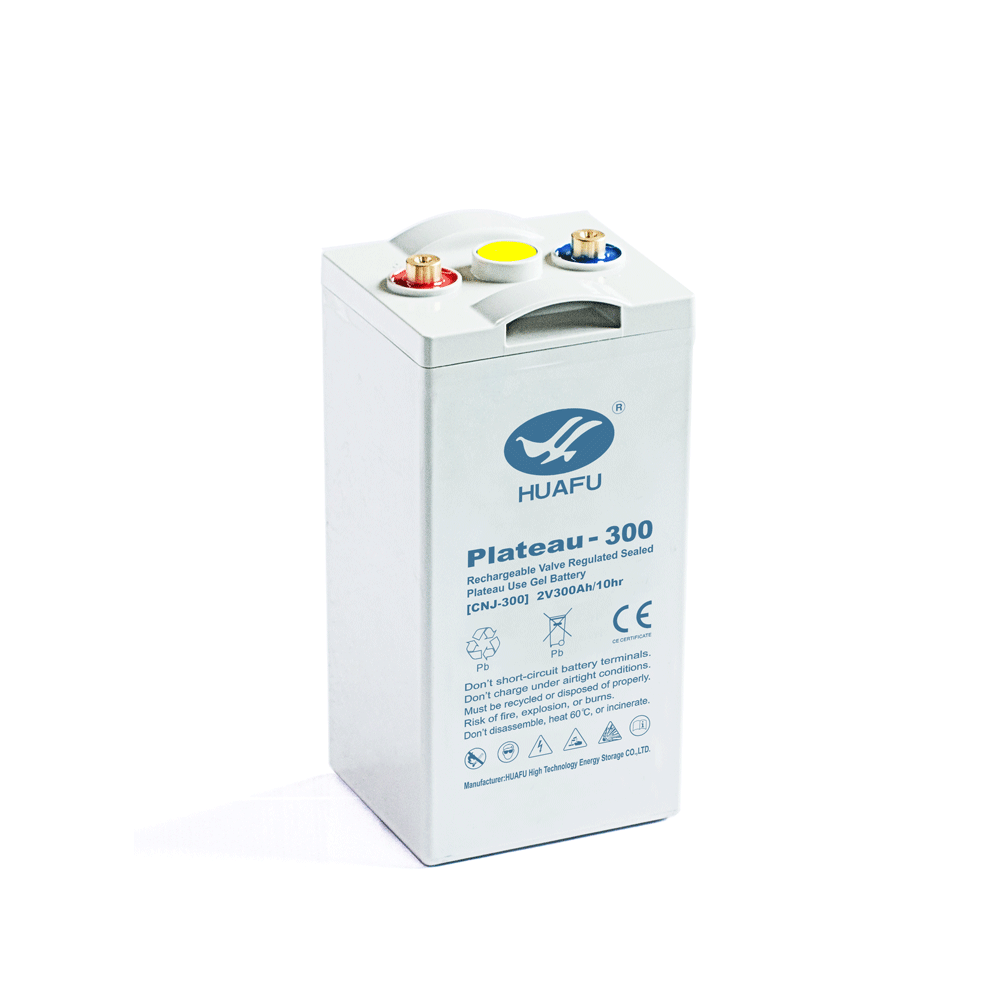

(Plateau-300)

Brief introduction Parameter Feature Transport Package

Nominal Voltage: 2V

Nominal Capacity: 300AH

Approximate Weight: 18.3Kgs (40.33Ibs)

Dimensions: 171(6.73)*151(5.94)*330(12.99)*342(13.46) mm/in

Packing Data for 20GP FCL
Qty of battery	Cases/20GP	Total G.W.	Total Volume
1260	21	24318	21.81
Battery will be put into carton box, then packed into plywood case. (1pc/Carton, 60pcs/Case)

INQUIRY

Nominal Voltage	2V
Nominal Capacity	10Hr Rate to 1.8V @25℃(77℉) 300Ah
Cycle Use Charging Voltage	2.4V @25℃(77℉)
Terminal	M8-Φ20
Operating Temperature Range	-50℃ to 65℃(-58℉~149℉)
Advice operating temperature	15℃~25℃(59℉~77℉)
Self Discharge @ 25˚C(77˚F)	HUAFU Plateaus series battery self-discharge <3%/month@25℃(77℉),can be stored up to 6 months at 25℃(77℉) and then a freshening charge is required. If the storage temperature higher than 25℃(77℉), a freshening recharge will be required sooner.
Case and cover	A.B.S. (UL94-V0 Optional)
Design Life time	15 Years
